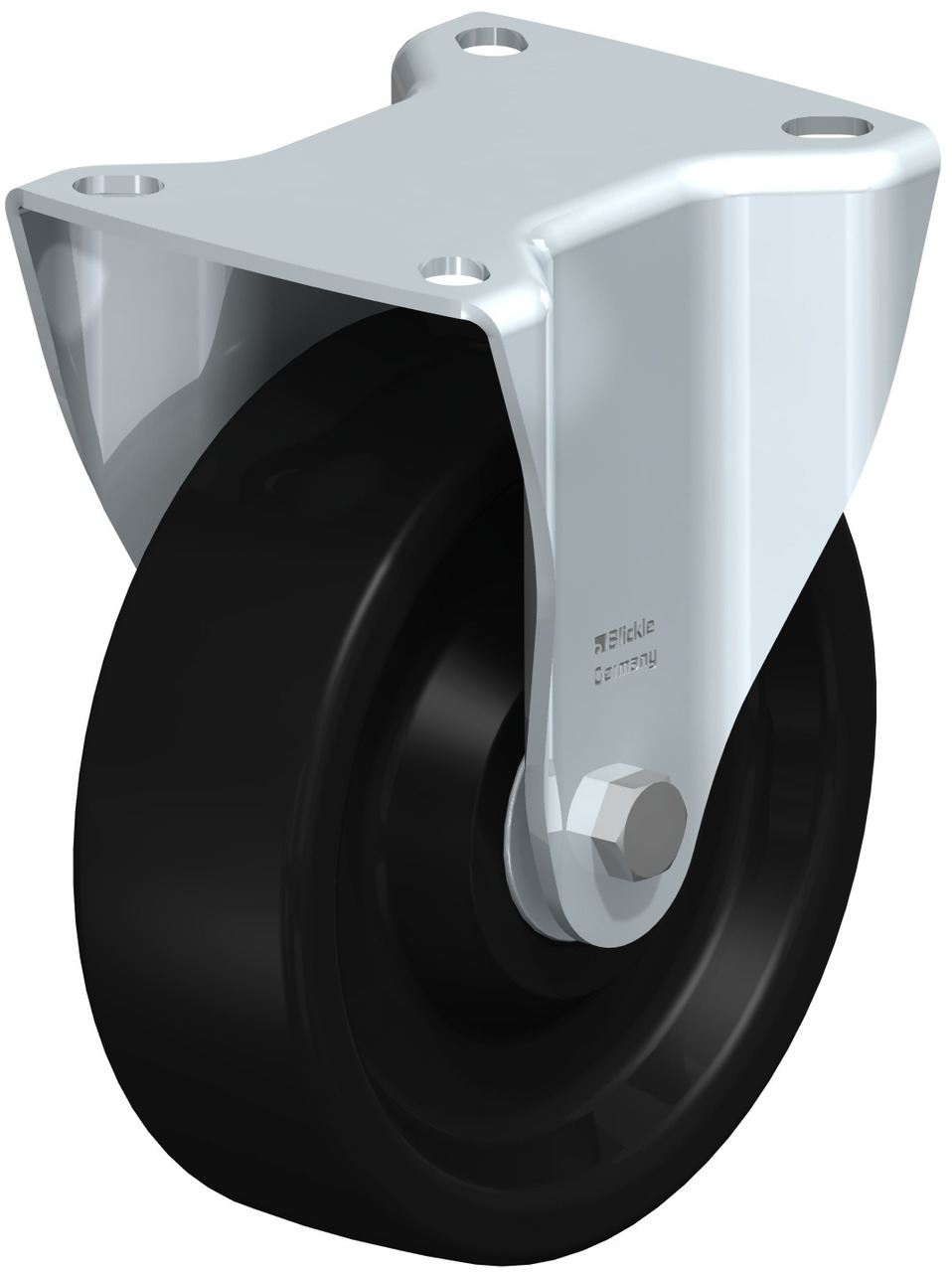

Pressed steel fixed castor, medium duty design, with top plate fitting, Blickle TempLine® Classic thermoset wheel, heat-resistant
Bracket: B series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: PHN series
- phenolic resin, hardness 90 Shore D, colour black
Other features
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +260 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
Technical data
| Product type | fixed castor |
|---|
| Wheel Ø | 125 mm |
|---|
| Wheel width | 40 mm |
|---|
| Bearing type | ball bearing |
|---|
| Load capacity (4 km/h) | 200 kg |
|---|
| Overall height | 150 mm |
|---|
| Top plate dimensions | 100 x 85 mm |
|---|
| Bolt hole spacing | 80 x 60 mm |
|---|
| Bolt hole Ø | 9 mm |
|---|
| Fitting type | top plate |
|---|
| Weight | 1.3 kg |
|---|
| Tread material | Synthetic |
|---|
| Wheel centre material | Blickle TempLine® Classic phenolic resin |
|---|
| Tread colour | black |
|---|
| Wheel centre colour | black |
|---|
| Temperature resistance | −30 to +300 °C |
|---|
| Tread hardness | 90 Shore D |
|---|
| Properties | heat-resistant |
|---|
Article data
| Manufacturer | Blickle (Blickle Räder+Rollen GmbH u. Co. KG) |
|---|
| Type | B-PHN 125IK |
|---|
| Blickle part number | 640250 |
|---|
| EAN | 4047526640255 |
|---|
| Order unit | piece |
|---|
| Customs tariff number | 87169090 |
|---|
| Country of origin | DE |
|---|
| eCl@ss 9.1 | 23370202 |
|---|
Data according to the manufacturer.
