Technical data (manufacturer information, German terms)
| Breite l1 | 70 |
|---|
| Länge l2 | 50 |
|---|
| Form | B - 2x2 Bohrungen für Sechskantschrauben |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d1 | M 6 |
|---|
| d2 | 6,2 |
|---|
| h1 | 19,5 |
|---|
| h2 | 10 |
|---|
| l3 | 17 |
|---|
| l4 | 23,5 |
|---|
| m1 | 46 |
|---|
| m2 | 30 |
|---|
| sw | 10 |
|---|
| t1 | 8 |
|---|
| t2 | 6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,040 kg |
|---|

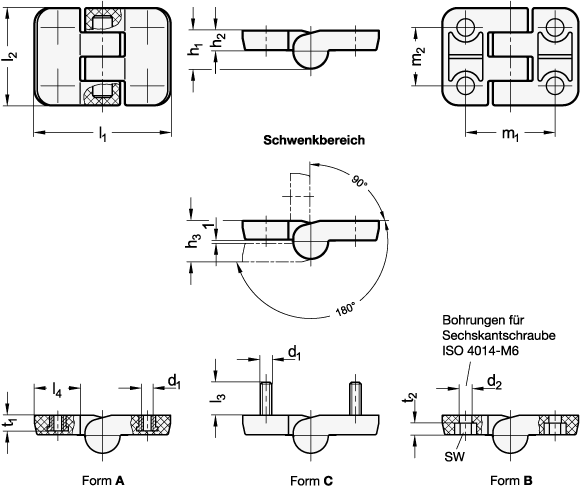

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 158 |
|---|
| Order designation | GN 158-70-50-B |
|---|
| EAN | 4045525060258 |
|---|
| Manufacturer designation (German) | Scharniere, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
