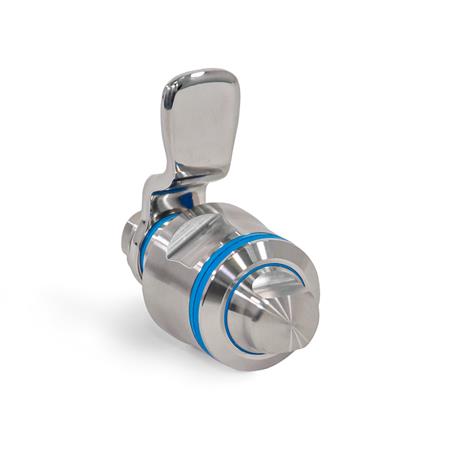

Technical data (manufacturer information, German terms)
| d1 | 30 |
|---|
| Riegelabstand A | 33 |
|---|
| Form | SW - mit Zweikant |
|---|
| Kennzeichen | VH - Betätigungs- und Riegelseite in Hygienic Design (Vollhygiene) |
|---|
| Werkstoff (Dichtring / O-Ring) | E - EPDM |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| b1 | 20 |
|---|
| b2 | 10 |
|---|
| d2 | 13 |
|---|
| k min. | 1,5 |
|---|
| max. | 6 |
|---|
| l1 | 45 |
|---|
| l2 | 15,3 |
|---|
| l3 ≈ | 47 |
|---|
| s1 | 27 |
|---|
| s2 | 13 |
|---|
| sw | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,211 kg |
|---|

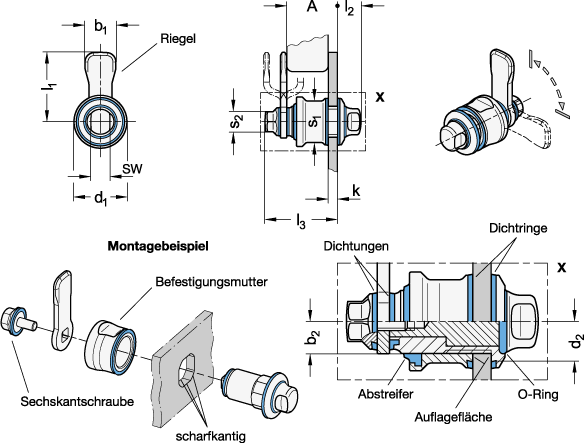

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 1150 |
|---|
| Order designation | GN 1150-30-SW-33-VH-E |
|---|
| EAN | 4045525756397 |
|---|
| Manufacturer designation (German) | Verriegelungen, Edelstahl, Betätigungs- und Riegelseite in Hygienic Design (Vollhygiene) |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83016000 |
|---|
| eCl@ss 5.1.4 | 23200104 |
|---|
