Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| l1 | 60 |
|---|
| l2 | 25 |
|---|
| Oberfläche | MT - matt, gleitgeschliffen |
|---|
| b | 30 |
|---|
| d1 | M 6 |
|---|
| d2 | 4 |
|---|
| m1 | 46 |
|---|
| m2 | 28 |
|---|
| s | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,063 kg |
|---|

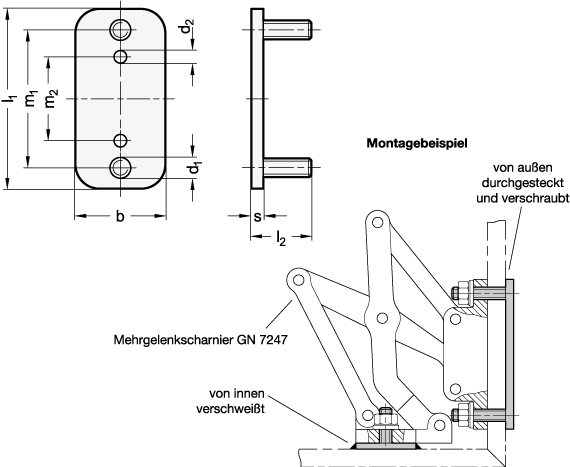

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7247.6 |
|---|
| Order designation | GN 7247.6-NI-60-25-MT |
|---|
| EAN | 4045525575868 |
|---|
| Manufacturer designation (German) | Gewindeplatten, Edelstahl, mit Außengewinde, für Mehrgelenkscharniere (Aluminium) |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
