Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Breite l1 | 60 |
|---|
| Länge l2 | 90 |
|---|
| Form | B - mit Durchgangsbohrungen |
|---|
| Länge l21 | 60 |
|---|
| Länge l22 | 90 |
|---|
| d1 | 6 |
|---|
| d2 | 5,2 |
|---|
| m1 | 36 |
|---|
| m3 | 33 |
|---|
| s | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,125 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 136 |
|---|
| Order designation | GN 136-ST-60-90-B |
|---|
| EAN | 4045525065666 |
|---|

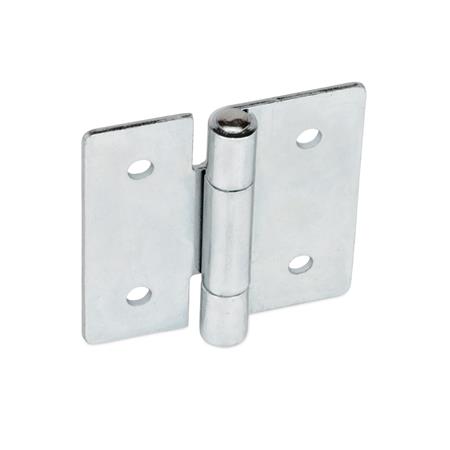

| Manufacturer designation (German) | Blechscharniere, quadratisch oder vertikal verlängert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
