Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 32 |
|---|
| Gewinde d2 | M 8 |
|---|
| Form | G - mit Gummiauflage |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| l2 | 22,5 |
|---|
| l3 | 5 |
|---|
| sw | 12 |
|---|
| t | 9 |
|---|
| Statische Belastbarkeit in kN Form A | 7 |
|---|
| Form G | 2 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,020 kg |
|---|

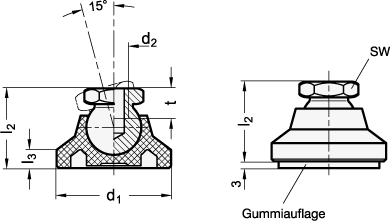

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 343.7 |
|---|
| Order designation | GN 343.7-32-M8-G |
|---|
| EAN | 4045525457072 |
|---|
| Manufacturer designation (German) | Gelenkfüße, Fuß Kunststoff, Gewindebuchse Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
