Technical data (manufacturer information, German terms)
| Gewinde d1 | M 12 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 20 |
|---|
| d3 | 30 |
|---|
| d4 | 34 |
|---|
| d5 | 30 |
|---|
| h | 55 |
|---|
| k1 | 10 |
|---|
| k2 | 56 |
|---|
| Länge l | 17 |
|---|
| sw | 14 |
|---|
| Nenntragfähigkeit (WLL) | 0,75 t [7,5 kN] |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,160 kg |
|---|

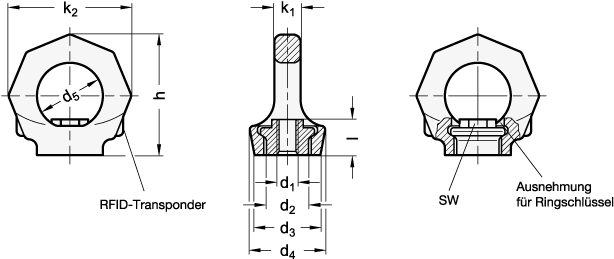

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 583 |
|---|
| Order designation | GN 583-M12 |
|---|
| EAN | 4045525590885 |
|---|
| Manufacturer designation (German) | Drehbare Ringmuttern, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 23110801 |
|---|
