Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 120 |
|---|
| Gewinde d2 | M 24 |
|---|
| Gesamtlänge l1 | 185 |
|---|
| Form | A - ohne Befestigungsbohrungen |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d3 | 36 |
|---|
| l2 | 29 |
|---|
| l3 | 35 |
|---|
| sw1 | 24 |
|---|
| sw2 | 30 |
|---|
| Statische Belastbarkeit in kN | 30 |
|---|
| LängeFilter | 64 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,156 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 19 |
|---|
| Order designation | GN 19-120-M24-185-A |
|---|
| EAN | 4045525845558 |
|---|

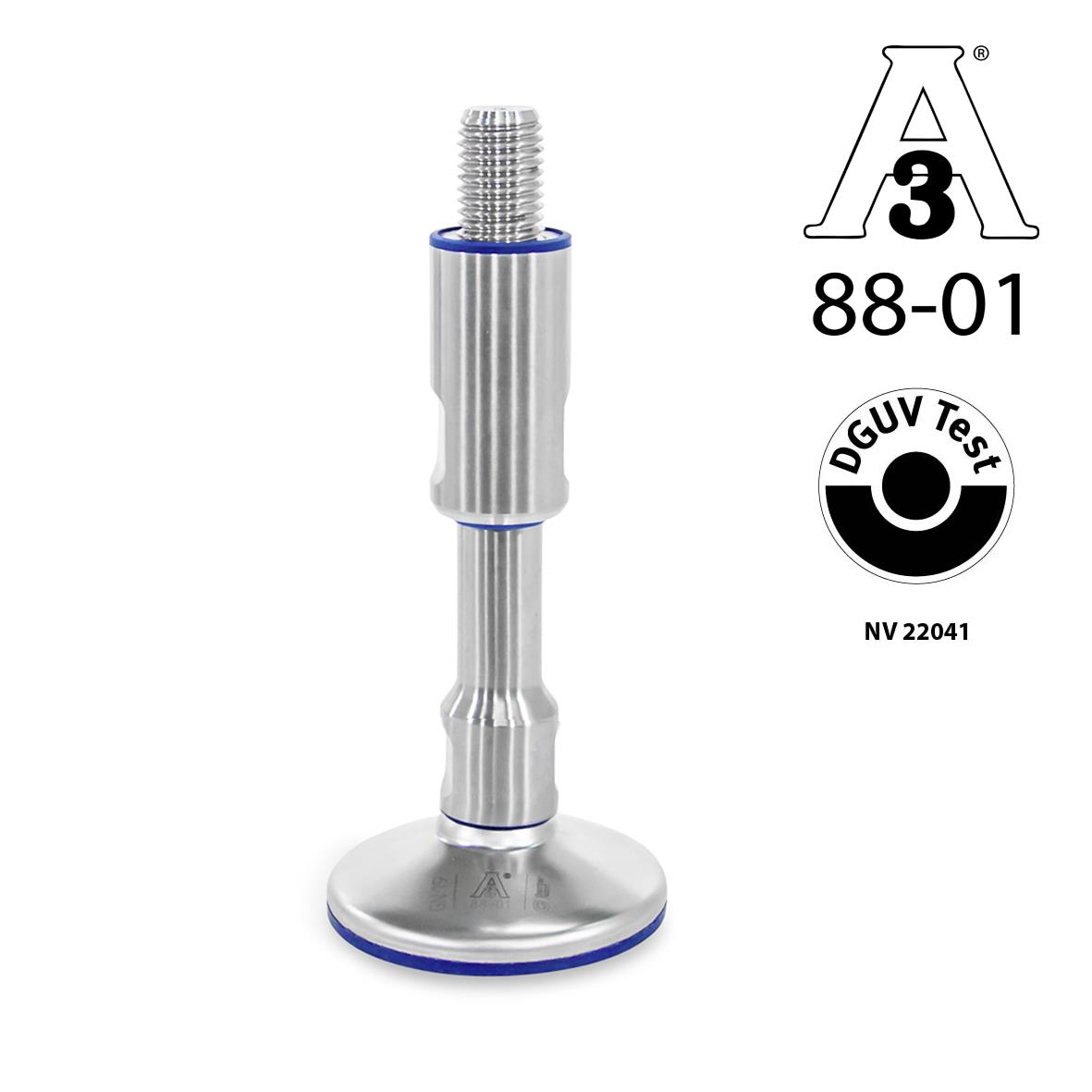

| Manufacturer designation (German) | Stellfüße, Edelstahl, 3-A und DGUV-zertifiziert, Hygienic Design |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
