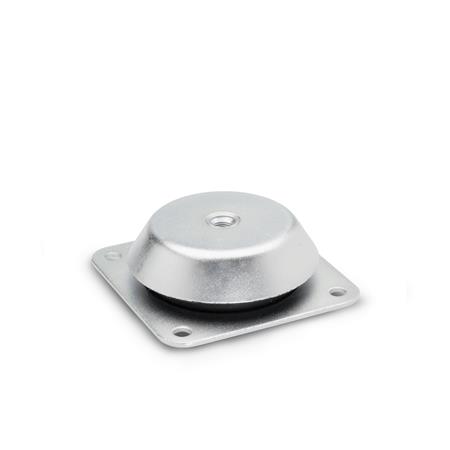

Maschinenfüße GN 148 – Ganter GN 148-113-M16-B-1-68
Dimensional drawing Ganter GN 148-113-M16-B-1-68
Mobile Preview: Maschinenfüße GN 148 – Ganter GN 148-113-M16-B-1-68
Mobile Preview: Dimensional drawing Ganter GN 148-113-M16-B-1-68

Maschinenfüße GN 148

Product No.:
148-113-M16-B-1-68
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Fußdurchmesser d1113
    Gewinde d2M 16
    FormB - mit Vierloch-Flansch (d~1~= 113 / 126)
    Kennziffer1 - ohne Abreißsicherung
    Härte68 - hart
    d3150
    d5 Form B12,5
    h52
    s4
    l2 Form B168
    m2 Form B132
    RoHSJa
    Gewicht1,878 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 148
    Order designationGN 148-113-M16-B-1-68
    EAN4045525782457
    Manufacturer designation (German)Maschinenfüße mit Schwingungsdämpfung
    Order unitPiece
    Customs tariff number40169991
    eCl@ss 5.1.423189090
