Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 8 |
|---|
| Gewindelänge l1 | 43 |
|---|
| Form | AG - ohne Mutter, mit Gummiauflage |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| Gewindelänge b | 130 |
|---|
| d3 | 10,5 |
|---|
| k1 | 70 |
|---|
| k2 | 25 |
|---|
| l2 | 31 |
|---|
| l3 | 14 |
|---|
| l4 | 22 |
|---|
| sw | 14 |
|---|
| Kugel-Ø | 14 |
|---|
| Statische Belastbarkeit in kN | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,124 kg |
|---|

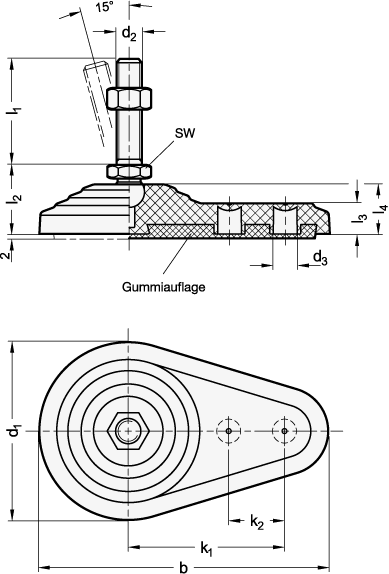

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 445 |
|---|
| Order designation | GN 445-80-M8-43-AG |
|---|
| EAN | 4045525398627 |
|---|
| Manufacturer designation (German) | Gelenkfüße, Kunststoff / Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
