Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Gewinde d1 | M 36 |
|---|
| d2 | 75 |
|---|
| d3 | 126 |
|---|
| d4 | 70 |
|---|
| e | 30 |
|---|
| h | 128 |
|---|
| k | 28 |
|---|
| m | 32 |
|---|
| F1 max. in N | 46000 |
|---|
| F2 max. in N | 33000 |
|---|
| F3 max. in N | 23000 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 2,080 kg |
|---|

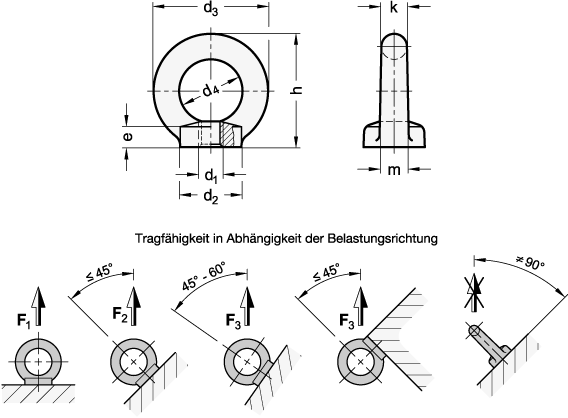

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 582 |
|---|
| Order designation | DIN 582-M36-ST |
|---|
| EAN | 4045525482494 |
|---|

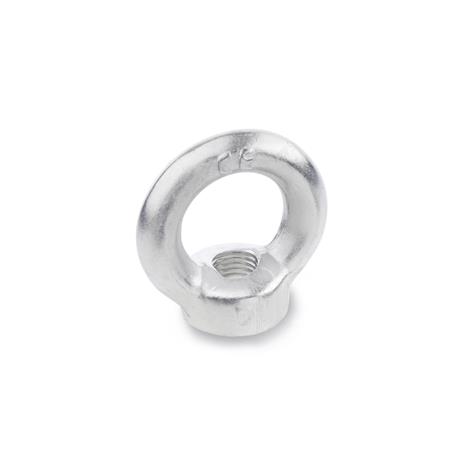

| Manufacturer designation (German) | Ringmuttern, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181300 |
|---|
| eCl@ss 5.1.4 | 23110801 |
|---|
