Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 20 |
|---|
| Länge l1 (T/TK) | 150 |
|---|
| Form (Fußteller) | D0 - ohne Gummiauflage |
|---|
| Spindelvariante | T - ohne Mutter, Schlüsselfläche unten |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d3 | 13 |
|---|
| h1 | 3 |
|---|
| h4 | 19 |
|---|
| l8 | 85 |
|---|
| m | 70 |
|---|
| r | 15 |
|---|
| sw2 | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,509 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 45 |
|---|
| Order designation | GN 45-80-M20-150-D0-T |
|---|
| EAN | 4045525454590 |
|---|

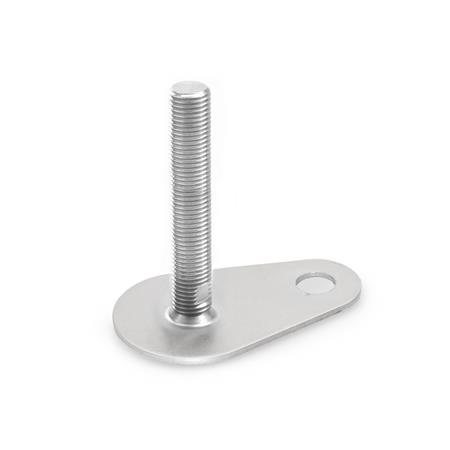

| Manufacturer designation (German) | Stellfüße, Edelstahl 1.4404 (A4), mit Befestigungslasche, Tropfenform |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
