Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 40 |
|---|
| Gewinde d2 | M 10 |
|---|
| Gewindelänge l1 | 52 |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| l2 | 13,5 |
|---|
| sw | 17 |
|---|
| Statische Belastbarkeit in kN | 3 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,038 kg |
|---|

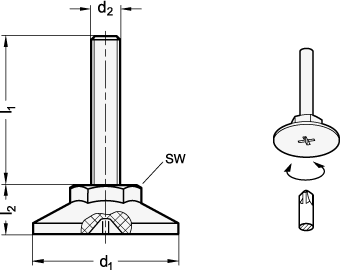

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 839 |
|---|
| Order designation | GN 839-40-M10-52 |
|---|
| EAN | 4045525083592 |
|---|
| Manufacturer designation (German) | Stellfüße, Verstellspindel Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
