Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Fußdurchmesser d1 | 36 |
|---|
| Gewinde d2 | M 10 |
|---|
| Gewindelänge l1 | 45 |
|---|
| Form | KS - mit Kunststoffkappe, gleitfähig |
|---|
| l2 ≈ | 9 |
|---|
| l3 ≈ | 6 |
|---|
| l4 Form KS | 1 |
|---|
| Form KR | 0,5 |
|---|
| sw | 5 |
|---|
| Statische Belastbarkeit in kN | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,078 kg |
|---|

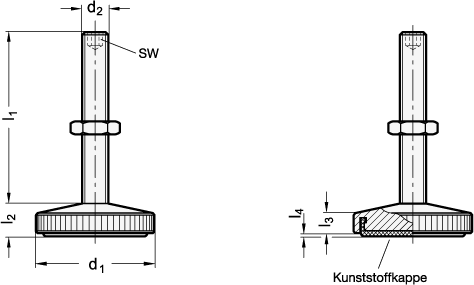

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 339 |
|---|
| Order designation | GN 339-36-M10-45-KS-ST |
|---|
| EAN | 4045525444041 |
|---|
| Manufacturer designation (German) | Stellfüße, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
