Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 25 |
|---|
| Gewinde d2 | M 6 |
|---|
| Gewindelänge l1 | 63 |
|---|
| Form | KR - mit Kunststoffkappe, rutschfest |
|---|
| Werkstoff | ST - Stahl |
|---|
| l2 | 19 |
|---|
| l3 | 20,5 |
|---|
| l4 | 4 |
|---|
| l5 | 5,5 |
|---|
| sw | 12 |
|---|
| Statische Belastbarkeit in kN Form OS, KS, KSE | 7,5 |
|---|
| Form KR, KRE | 1 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,046 kg |
|---|

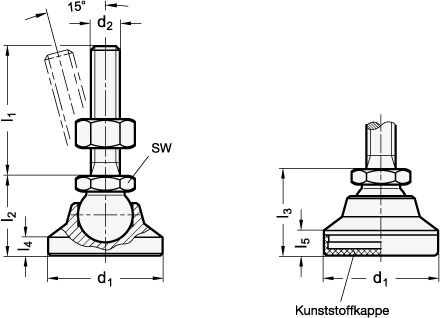

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 343.2 |
|---|
| Order designation | GN 343.2-25-M6-63-KR |
|---|
| EAN | 4045525113961 |
|---|
| Manufacturer designation (German) | Gelenkfüße, Stahl, mit Verstellspindel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
