Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 125 |
|---|
| Gewinde d2 | M 24 |
|---|
| Gewindelänge l1 | 136 |
|---|
| Form | B - mit Mutter, ohne Gummiauflage |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| l2 | 64 |
|---|
| l3 | 45 |
|---|
| l4 | 23 |
|---|
| d3 | 12,5 |
|---|
| k | 95 |
|---|
| sw | 24 |
|---|
| Statische Belastbarkeit in kN | 40 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,830 kg |
|---|

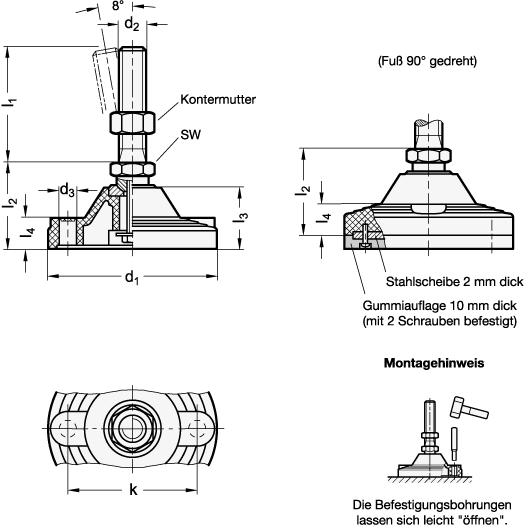

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 245 |
|---|
| Order designation | GN 245-125-M24-136-B |
|---|
| EAN | 4045525108646 |
|---|
| Manufacturer designation (German) | Stellfüße mit Befestigungsbohrungen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
