Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 125 |
|---|
| Höhe h (Form SS) | 75 |
|---|
| Gewinde d2 | M 16 |
|---|
| Härte | 55 - mittel |
|---|
| Form | SS - mit 2 Schrauben |
|---|
| Werkstoff | NR - Gummi Naturkautschuk (NR) |
|---|
| Werkstoff2 | NI - Edelstahl |
|---|
| Länge l | 41 |
|---|
| s | 3 |
|---|
| t ≈ | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,653 kg |
|---|

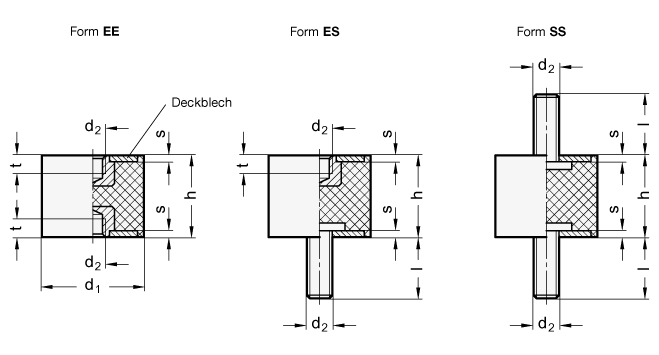

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 451 |
|---|
| Order designation | GN 451-125-75-M16-SS-55 |
|---|
| EAN | 4045525061620 |
|---|
| Manufacturer designation (German) | Gummipuffer, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 40169991 |
|---|
| eCl@ss 5.1.4 | 23189090 |
|---|
