Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 20 x 1,5 |
|---|
| Gewindelänge l1 | 100 |
|---|
| Form (Fußplatte) | C - mit O-Ring |
|---|
| Werkstoff | ST - Stahl |
|---|
| l2 ≈ | 27,5 |
|---|
| l3 | 15 |
|---|
| sw1 | 16 |
|---|
| sw2 | 16 |
|---|
| Statische Belastbarkeit F in kN Form A / C | 50 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,581 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 36 |
|---|
| Order designation | GN 36-80-M20X1,5-100-C |
|---|
| EAN | 4045525692596 |
|---|

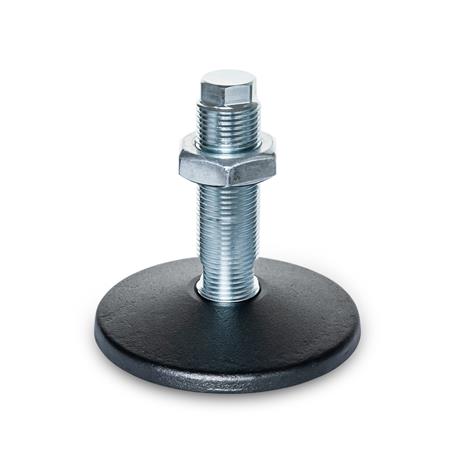

| Manufacturer designation (German) | Maschinenfüße, ohne zentrale Befestigungsbohrung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
