Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 75 |
|---|
| Höhe h (Form E) | 40 |
|---|
| Gewinde d2 | M 12 |
|---|
| Härte | 55 - mittel |
|---|
| Form | E - mit Innengewinde |
|---|
| Werkstoff | NR - Gummi Naturkautschuk (NR) |
|---|
| Werkstoff2 | NI - Edelstahl |
|---|
| Länge l | 37 |
|---|
| s | 3 |
|---|
| t | 11 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,261 kg |
|---|

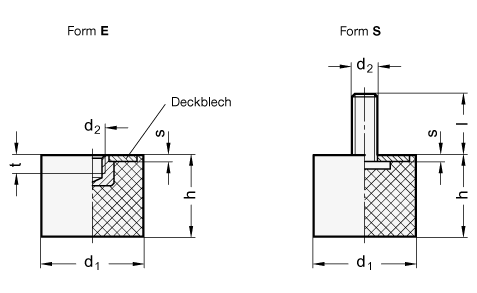

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 452 |
|---|
| Order designation | GN 452-75-40-M12-E-55 |
|---|
| EAN | 4045525807488 |
|---|
| Manufacturer designation (German) | Anschlagpuffer, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 40169991 |
|---|
| eCl@ss 5.1.4 | 23189090 |
|---|
