Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 24 |
|---|
| Länge l1 (T/TK/U/UK) | 300 |
|---|
| Form (Fußteller) | D1 - mit Gummiauflage, aufgeklipst, schwarz |
|---|
| Spindelvariante | TK - mit Mutter, Schlüsselfläche unten |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d1 | 80 |
|---|
| d2 | M 24 |
|---|
| h1 | 3 |
|---|
| h4 | 22 |
|---|
| m | 64 |
|---|
| s | 2 |
|---|
| sw2 | 19 |
|---|
| Ausführung T / TK / U / UK | 22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,155 kg |
|---|

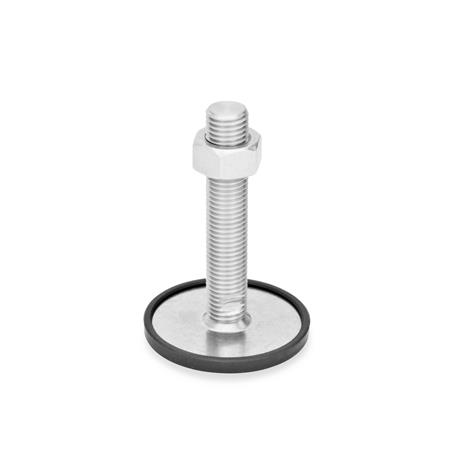

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 41 |
|---|
| Order designation | GN 41-80-M24-300-D1-TK |
|---|
| EAN | 4045525706682 |
|---|
| Manufacturer designation (German) | Stellfüße, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
