Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 120 |
|---|
| Gewinde d2 | M 30 |
|---|
| Länge l1 (T/TK/U/UK) | 300 |
|---|
| Form | D0 - feingedreht, ohne Gummiauflage |
|---|
| Spindelvariante | UK - mit Mutter, Innensechskant oben und Schlüsselfläche unten |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d1 | 120 |
|---|
| d2 | M 30 |
|---|
| h1 | 12 |
|---|
| h4 | 39,5 |
|---|
| sw2 | 24 |
|---|
| sw3 | 12 |
|---|
| Ausführung T / TK Ausführung U / UK | 43 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 3,423 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 21 |
|---|
| Order designation | GN 21-120-M30-300-D0-UK |
|---|
| EAN | 4045525699618 |
|---|

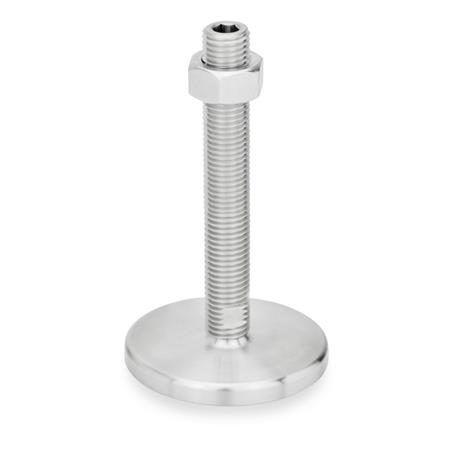

| Manufacturer designation (German) | Stellfüße, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
