Technical data (manufacturer information, German terms)
| Außenvierkant s | V 50 |
|---|
| Gewinde d2 | M 16 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| l1 | 45,5 |
|---|
| l2 | 2,5 |
|---|
| l3 | 30 |
|---|
| w | 3 |
|---|
| für Rohr GN 990 | D50 / V50 |
|---|
| Außen-Ø | V - Vierkant |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,160 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 992 |
|---|
| Order designation | GN 992-V50-M16 |
|---|
| EAN | 4045525428188 |
|---|

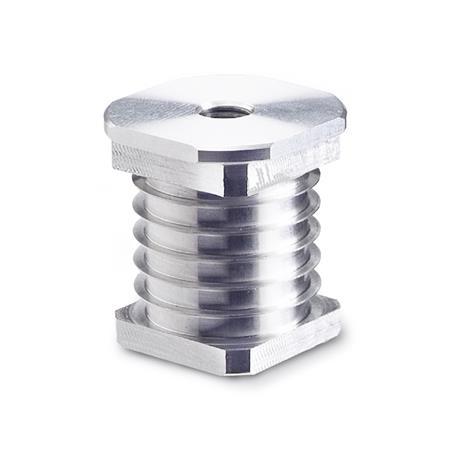

| Manufacturer designation (German) | Einsteckbuchsen, Aluminium, für Rund- und Vierkantrohre |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 23110990 |
|---|
