Technical data (manufacturer information, German terms)
| Fußdurchmesser d1 | 100 |
|---|
| Gewinde d2 | M 16 |
|---|
| Gewindelänge l1 | 58 |
|---|
| Form | BG - mit Mutter, mit Gummiauflage |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| l2 | 43 |
|---|
| l3 | 23 |
|---|
| l4 | 24 |
|---|
| d3 | 12,5 |
|---|
| k | 70 |
|---|
| sw | 24 |
|---|
| Kugel-Ø | 24 |
|---|
| Statische Belastbarkeit in kN | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,360 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 345 |
|---|
| Order designation | GN 345-100-M16-58-BG |
|---|
| EAN | 4045525216525 |
|---|

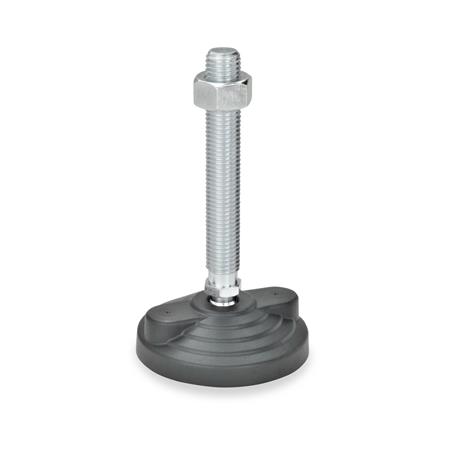

| Manufacturer designation (German) | Gelenkfüße, Kunststoff / Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73269098 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
