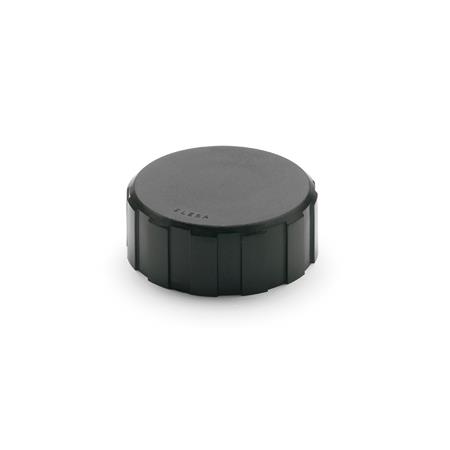

Einfülldeckel GN 548.2, Kunststoff – Ganter GN 548.2-M60X2
Dimensional drawing Ganter GN 548.2-M60X2
Preview: Einfülldeckel GN 548.2, Kunststoff – Ganter GN 548.2-M60X2
Preview: Dimensional drawing Ganter GN 548.2-M60X2
Einfülldeckel GN 548.2, Kunststoff
Einfülldeckel GN 548.2, Kunststoff – Ganter GN 548.2-M60X2
Dimensional drawing Ganter GN 548.2-M60X2
Mobile Preview: Einfülldeckel GN 548.2, Kunststoff – Ganter GN 548.2-M60X2
Mobile Preview: Dimensional drawing Ganter GN 548.2-M60X2

Einfülldeckel GN 548.2, Kunststoff

Product No.:
548.2-M60X2
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Gewinde d11M 60 x 2
    WerkstoffPA - Kunststoff, Polyamid
    d270
    Länge l26
    t18
    RoHSJa
    Gewicht0,055 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 548.2
    Order designationGN 548.2-M60X2
    EAN4045525482043
    Manufacturer designation (German)Einfülldeckel, Kunststoff
    Order unitPiece
    Customs tariff number90268080
    eCl@ss 5.1.423111101
