Technical data (manufacturer information, German terms)
| Schraubenabstand l1 | 254 |
|---|
| Form | AK - ohne Thermometer, ohne Schutzgehäuse, mit Kunststoff-Schrauben |
|---|
| b1 | 22 |
|---|
| b2 | 27 |
|---|
| d Form A / AS Form B / BS | M 12 |
|---|
| Form AK Form BK | M 12 |
|---|
| l2 | 23 |
|---|
| l3 | 203 |
|---|
| l4 | 278 |
|---|
| l5 | 23 |
|---|
| l6 | 12 |
|---|
| l7 | 15 |
|---|
| l8 | 17,5 |
|---|
| l9 | 284 |
|---|
| l10 | 15 |
|---|
| s ≈ max. Wandstärke | 10 |
|---|
| Thermometerskala °C | 0 ... 100 |
|---|
| °F | 32 ... 210 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,120 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 650.4 |
|---|
| Order designation | GN 650.4-254-AK |
|---|
| EAN | 4045525106130 |
|---|

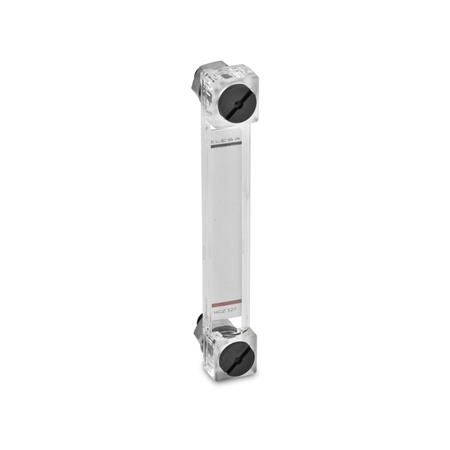

| Manufacturer designation (German) | Ölstandsanzeiger, schmale Form, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90261029 |
|---|
| eCl@ss 5.1.4 | 27309219 |
|---|
