Technical data (manufacturer information, German terms)
| Gewinde d1 | G 1 1/4 |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 49 |
|---|
| d4 | 7 |
|---|
| h1 | 18 |
|---|
| h2 | 92 |
|---|
| l1 | 148 |
|---|
| l2 | 117 |
|---|
| s | 7 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,300 kg |
|---|

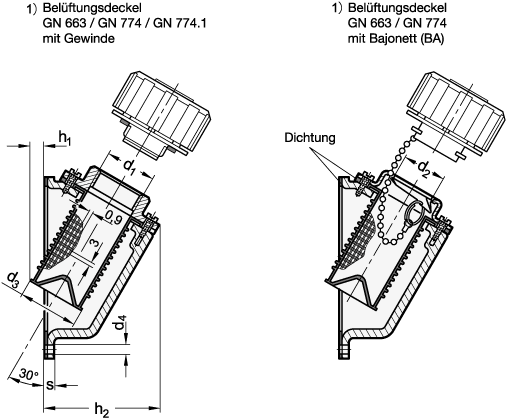

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 664.1 |
|---|
| Order designation | GN 664.1-G11/4 |
|---|
| EAN | 4045525348394 |
|---|
| Manufacturer designation (German) | Einfüllsiebe für Seitenmontage |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90268080 |
|---|
| eCl@ss 5.1.4 | 37011401 |
|---|
