Technical data (manufacturer information, German terms)
| Schauöffnung d1 | 11 |
|---|
| Gewinde d2 | 3/8 NPT |
|---|
| Form | B - ohne Reflektor |
|---|
| Werkstoff | MS - Messing |
|---|
| a Bezugsebene | 6,1 |
|---|
| d3 bei a | 17,1 |
|---|
| kegelig | 3/8 NPT |
|---|
| e | 22 |
|---|
| l1 | 15 |
|---|
| l2 | 6 |
|---|
| p Gewindesteigung | 1,41 |
|---|
| s | 19,1 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,005 kg |
|---|

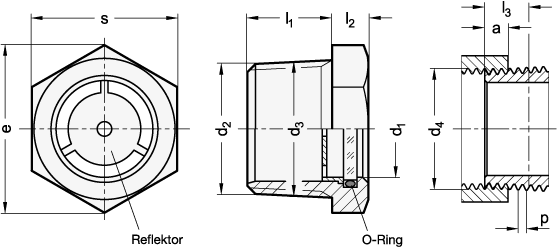

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 743.7 |
|---|
| Order designation | GN 743.7-11-3/8NPT-B |
|---|
| EAN | 4045525614222 |
|---|
| Manufacturer designation (German) | Ölschaugläser mit kegeligem Gewinde, Messing |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90261089 |
|---|
| eCl@ss 5.1.4 | 37011302 |
|---|
