Technical data (manufacturer information, German terms)
| Werkstoff | MS - Messing |
|---|
| Zollgewinde d1 (Messing) | G 3/4 |
|---|
| Form | K - mit Kunststoff-Schutzkappe und Halteseil |
|---|
| d2 | 32 |
|---|
| d3 Anschlussgewinde für GN 880.1 | M26 x 1,5 |
|---|
| d4 | 30 |
|---|
| e ≈ | 37 |
|---|
| l1 | 9 |
|---|
| l2 | 12 |
|---|
| l3 | 32 |
|---|
| sw | 32 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,140 kg |
|---|

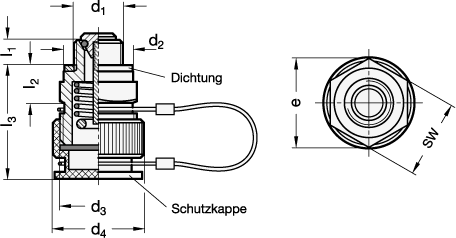

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 880 |
|---|
| Order designation | GN 880-G3/4-MS-K |
|---|
| EAN | 4045525898103 |
|---|
| Manufacturer designation (German) | Ölablassventile |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84818079 |
|---|
| eCl@ss 5.1.4 | 27309190 |
|---|
