Technical data (manufacturer information, German terms)
| Zollgewinde d1 | G 1/2 |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| d2 | 20,5 |
|---|
| e2 ≈ | 32 |
|---|
| l1 | 11 |
|---|
| l3 | 20 |
|---|
| s2 | 27 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,011 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 740.2 |
|---|
| Order designation | GN 740.2-G1/2 |
|---|
| EAN | 4045525421387 |
|---|

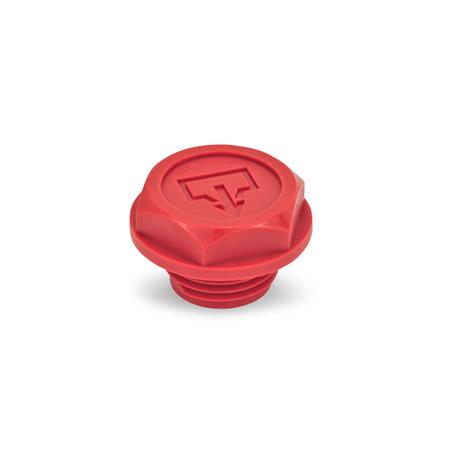

| Manufacturer designation (German) | Verschlussschrauben mit DIN-Ablasssymbol, Kunststoff, rot, O-Ring eingefasst |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39235090 |
|---|
| eCl@ss 5.1.4 | 23111101 |
|---|
