Technical data (manufacturer information, German terms)
| Werkstoff | MS - Messing |
|---|
| Feingewinde d1 | M 40 x 1,5 |
|---|
| b | 5 |
|---|
| d2 empfohlener Bohrungs-Ø | 40 |
|---|
| e ≈ | 50,5 |
|---|
| s | 46 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,024 kg |
|---|

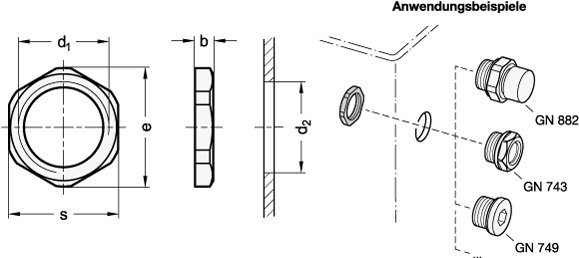

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7430 |
|---|
| Order designation | GN 7430-M40X1,5-MS |
|---|
| EAN | 4045525573154 |
|---|
| Manufacturer designation (German) | Befestigungsmuttern, Messing, für Hydraulikkomponenten |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 74153300 |
|---|
| eCl@ss 5.1.4 | 23110701 |
|---|
