Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Gewinde d1 | M 16 x 1,5 |
|---|
| Form | A - ohne Dichtung |
|---|
| Bohrungsdurchmesser | 21 |
|---|
| d3 | 16,3 |
|---|
| d4 Dichtung Außen-Ø | 20 |
|---|
| l1 | 12 |
|---|
| l2 | 3 |
|---|
| s | 1,5 |
|---|
| sw | 8 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,019 kg |
|---|

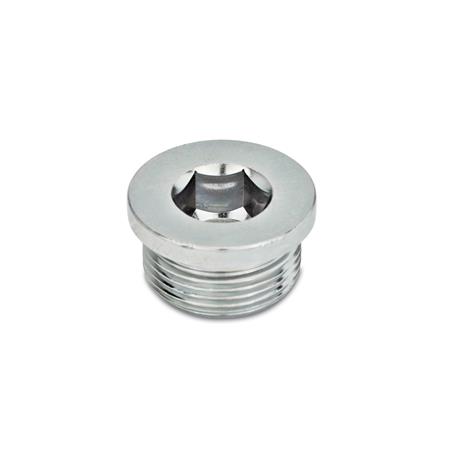

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 908 |
|---|
| Order designation | DIN 908-ST-M16X1,5-A |
|---|
| EAN | 4045525898868 |
|---|
| Manufacturer designation (German) | Verschlussschrauben |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181568 |
|---|
| eCl@ss 5.1.4 | 23111101 |
|---|
