Technical data (manufacturer information, German terms)
| Schraubenabstand l1 | 76 |
|---|
| Form | A - ohne Thermometer |
|---|
| d | M 10 |
|---|
| b | 27 |
|---|
| l2 | 21 |
|---|
| l3 | 40 |
|---|
| l4 | 106 |
|---|
| l5 | 18 |
|---|
| l6 | 15 |
|---|
| l7 | 16 |
|---|
| s ≈ max. Wandstärke | 12 |
|---|
| Thermometerskala °C | 20 ... 100 |
|---|
| °F | 68 ... 210 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,084 kg |
|---|

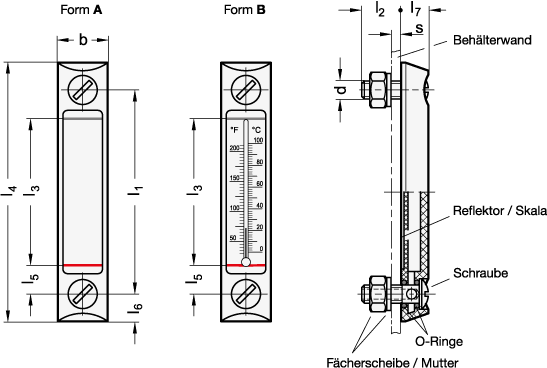

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 650 |
|---|
| Order designation | GN 650-76-A |
|---|
| EAN | 4045525347267 |
|---|
| Manufacturer designation (German) | Ölstandsanzeiger, Kunststoff / Schraube Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 90261029 |
|---|
| eCl@ss 5.1.4 | 27309219 |
|---|
