Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| d1 | 40 |
|---|
| Bohrungskennzeichnung | B - ohne Passfedernut |
|---|
| Härte | RS - 98 Shore A, rot |
|---|
| d2 | 14 |
|---|
| d3 | 16 |
|---|
| d2 - d°°3° | 12-12 |
|---|
| x2 | 12-14 |
|---|
| x3 | 12-15 |
|---|
| x4 | 12-16 |
|---|
| x5 | 14-14 |
|---|
| x6 | 14-15 |
|---|
| x7 | 14-16 |
|---|
| x8 | 15-15 |
|---|
| x9 | 15-16 |
|---|
| x10 | 16-16 |
|---|
| d4 | M 5 |
|---|
| l1 | 66 |
|---|
| l2 empfohlene Welleneinstecktiefe | 25 |
|---|
| l3 | 8,5 |
|---|
| s empfohlener Einbauabstand | 2 |
|---|
| Anzugsdrehmoment der Schraube in Nm ≈ | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,193 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2241 |
|---|

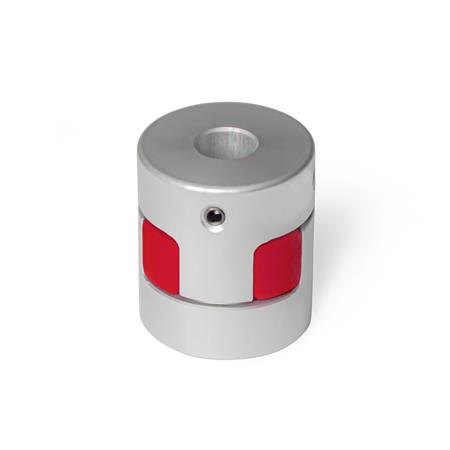

| Order designation | GN 2241-40-B14-16-AL-RS |
|---|
| EAN | 4045525616257 |
|---|
| Manufacturer designation (German) | Elastomer-Klauenkupplungen mit Gewindestift |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84836080 |
|---|
| eCl@ss 5.1.4 | 23031101 |
|---|
