Technical data (manufacturer information, German terms)
| Bohrung d1 | 16 |
|---|
| Gewinde d2 | M 10 |
|---|
| Form | CSN - mit Gewindezapfen, mit Sicherungsbügel |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| d3 | M 10 |
|---|
| d5 | 16 |
|---|
| d6 | 24 |
|---|
| l1 | 20 |
|---|
| l3 | 15 |
|---|
| l4 | 35 |
|---|
| t min. | 15,5 |
|---|
| sw | 13 |
|---|
| min. Abzugskraft in N | 80 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,099 kg |
|---|

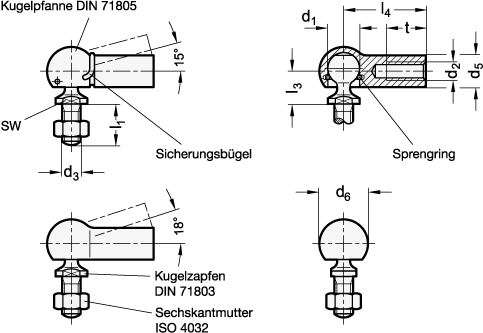

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 71802 |
|---|
| Order designation | DIN 71802-16-M10-CSN |
|---|
| EAN | 4045525360099 |
|---|
| Manufacturer designation (German) | Winkelgelenke, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
