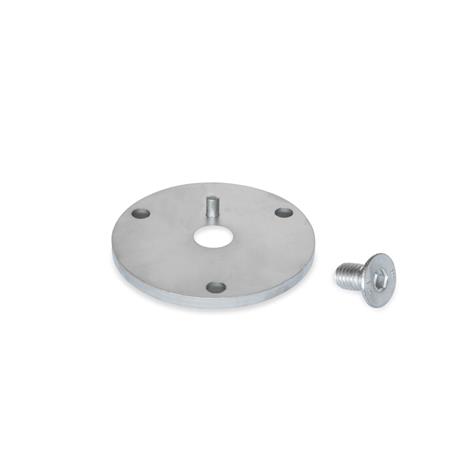

Flansche GN 784.1

Product No.:
784.1-60-MT
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d160
    OberflächeMT - matt, gleitgeschliffen
    WerkstoffNI - Edelstahl
    d039
    d250
    d35,5
    Gewinde d4M 8
    d54
    h110
    h214,6
    m12
    s4
    RoHSJa
    Gewicht0,090 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 784.1
    Order designationGN 784.1-60-MT
    EAN4045525129757
    Manufacturer designation (German)Flansche für Kugelgelenke GN 784
    Order unitPiece
    Customs tariff number73182900
    eCl@ss 5.1.490909090
