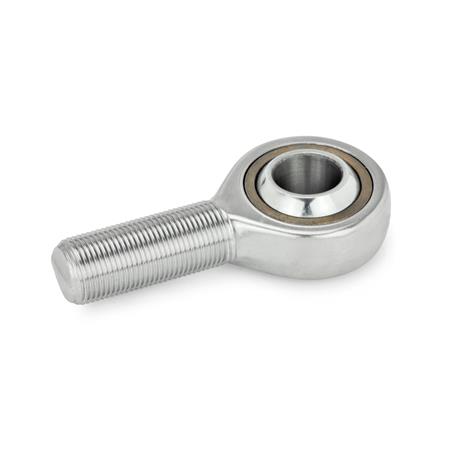

Gelenkköpfe mit Schraube GN 648.6, Edelstahl

Name: Gelenkköpfe mit Schraube GN 648.6, Edelstahl
Brand: Ganter
SKU: 648.6-25-M24X2L-WH

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Technical data (manufacturer information, German terms)

Bohrung d1	25
Gewinde d2	M 24 x 2L
Form	WH - Bronze-PTFE / Stahl wartungsfrei
Werkstoff	NI - Edelstahl
b1	31
b2	22
d3	29,6
d4	60
l1	94
l2	124
l3	58
w Kippwinkel	15°
RoHS	Ja
Gewicht	0,630 kg

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

Article data

Manufacturer	Ganter (Otto Ganter GmbH & Co. KG)
Standard part	GN 648.6
Order designation	GN 648.6-25-M24X2L-WH
EAN	4045525461109
Manufacturer designation (German)	Gelenkköpfe mit Schraube, Edelstahl
Order unit	Piece
Customs tariff number	84833038
eCl@ss 5.1.4	23050105
