Technical data (manufacturer information, German terms)
| Bohrung d1 | 13 |
|---|
| Gewinde | M 8L |
|---|
| Form | C - mit Gewindezapfen, ohne Sicherungsbügel |
|---|
| Werkstoff | ST - Stahl |
|---|
| d3 | M 8 |
|---|
| d5 | 13 |
|---|
| d6 | 19,3 |
|---|
| l1 | 16,5 |
|---|
| l3 | 12 |
|---|
| l4 | 30 |
|---|
| t min. | 14 |
|---|
| sw | 11 |
|---|
| min. Abzugskraft in N | 60 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,075 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 71802 |
|---|
| Order designation | DIN 71802-13-M8L-C |
|---|
| EAN | 4045525359987 |
|---|

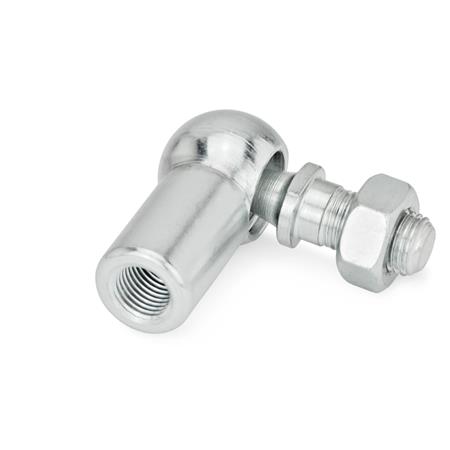

| Manufacturer designation (German) | Winkelgelenke mit Gewindezapfen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
