Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| d1 | 30 |
|---|
| Bohrungskennzeichnung | K - mit Passfedernut (ab d~1~ = 30) |
|---|
| Härte | WS - 92 Shore A, weiß |
|---|
| d2 | 10 |
|---|
| d3 | 12 |
|---|
| d2 - d3 | 8-8 |
|---|
| x2 | 8-10 |
|---|
| x3 | 8-12 |
|---|
| x4 | 8-14 |
|---|
| x5 | 10-10 |
|---|
| x6 | 10-12 |
|---|
| x7 | 10-14 |
|---|
| x8 | 12-12 |
|---|
| x9 | 12-14 |
|---|
| x10 | 14-14 |
|---|
| d4 | M 4 |
|---|
| l1 | 35 |
|---|
| l2 empfohlene Welleneinstecktiefe | 11 |
|---|
| l3 | 5,5 |
|---|
| l4 | 10 |
|---|
| s empfohlener Einbauabstand | 1,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,051 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2240 |
|---|
| Order designation | GN 2240-30-K10-12-AL-WS |
|---|
| EAN | 4045525608573 |
|---|

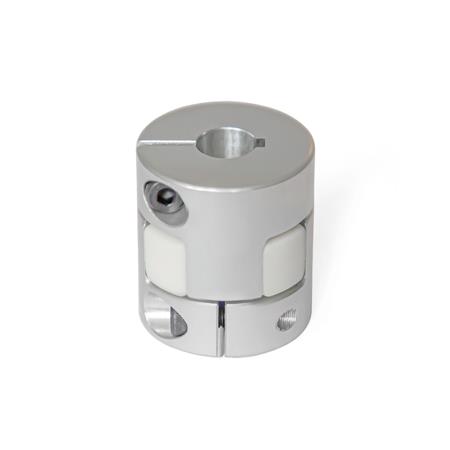

| Manufacturer designation (German) | Elastomer-Klauenkupplungen mit Klemmnabe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84836080 |
|---|
| eCl@ss 5.1.4 | 23031101 |
|---|
