Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| d1 | 14 |
|---|
| Bohrungskennzeichnung | B - ohne Passfedernut |
|---|
| Härte | WS - 92 Shore A, weiß |
|---|
| d2 | 4 |
|---|
| d3 | 6 |
|---|
| d2 - d°°3° | 3-3 |
|---|
| x2 | 3-4 |
|---|
| x3 | 3-5 |
|---|
| x4 | 3-6 |
|---|
| x5 | 4-4 |
|---|
| x6 | 4-5 |
|---|
| x7 | 4-6 |
|---|
| x8 | 5-5 |
|---|
| x9 | 5-6 |
|---|
| x10 | 6-6 |
|---|
| d4 | M 3 |
|---|
| l1 | 22 |
|---|
| l2 empfohlene Welleneinstecktiefe | 7 |
|---|
| l3 | 3,5 |
|---|
| s empfohlener Einbauabstand | 1 |
|---|
| Anzugsdrehmoment der Schraube in Nm ≈ | 0,7 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,009 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2241 |
|---|
| Order designation | GN 2241-14-B4-6-AL-WS |
|---|
| EAN | 4045525614604 |
|---|

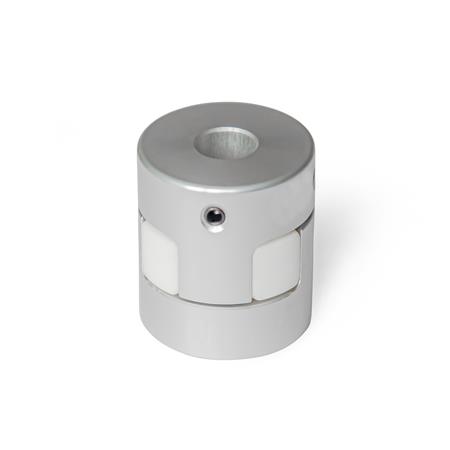

| Manufacturer designation (German) | Elastomer-Klauenkupplungen mit Gewindestift |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84836080 |
|---|
| eCl@ss 5.1.4 | 23031101 |
|---|
