Technical data (manufacturer information, German terms)
| Bohrung d1 | 10 |
|---|
| Länge l1 | 40 |
|---|
| Gewinde d2 | M 10 |
|---|
| Form | A - ohne Bolzen |
|---|
| Werkstoff | ST - Stahl |
|---|
| a | 20 |
|---|
| b | 10 |
|---|
| d3 | 18 |
|---|
| l2 kurz | 40 |
|---|
| lang | 60 |
|---|
| l3 kurz | 52 |
|---|
| l4 | 11,5 |
|---|
| sw | 16 |
|---|
| Statische Belastbarkeit FA in N | 6000 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,102 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 751.1 |
|---|
| Order designation | GN 751.1-10-40-M10-A |
|---|
| EAN | 4045525111448 |
|---|

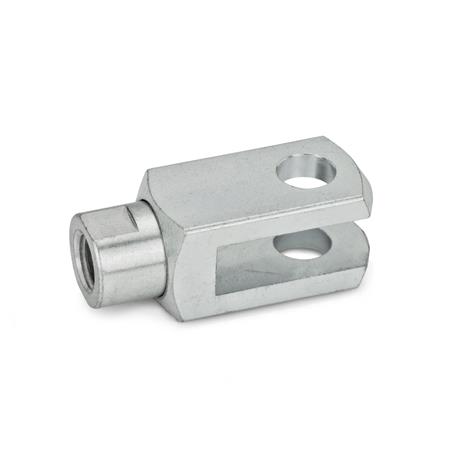

| Manufacturer designation (German) | Gabelgelenke, Stahl, mit drehbarem Schaft |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
