Technical data (manufacturer information, German terms)
| Bohrung d1 | B 30 |
|---|
| x1 | 75 |
|---|
| Form | T - Verstellung mit 10°-Teilung (Verzahnung) |
|---|
| Kennziffer | 2 - mit 2 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| Farbe | GR - grau, RAL 7040, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d2 | 6,5 |
|---|
| k | 45 |
|---|
| l1 | 100 |
|---|
| l2 | 54 |
|---|
| m1 | 33 |
|---|
| m2 | 67 |
|---|
| t | 8 |
|---|
| x2 | 60 |
|---|
| y1 | 75 |
|---|
| y2 | 60 |
|---|
| z1 Schraubstelle | M8-25 |
|---|
| z2 Schraubstelle | M8-25 |
|---|
| Zubehör empf. Klemmhebel GN 911.9 für z1 / z2 l3 | 63 | 78 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,157 kg |
|---|

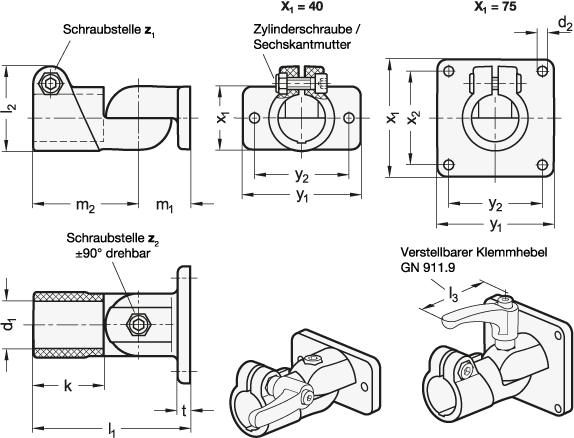

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 282.9 |
|---|
| Order designation | GN 282.9-B30-75-T-2-GR |
|---|
| EAN | 4045525857865 |
|---|
| Manufacturer designation (German) | Gelenk-Klemmverbinder, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
