Technical data (manufacturer information, German terms)
| Vierkant s1 | V 20 |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Kennziffer | 2 - mit 2 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 8,5 |
|---|
| k Klemmlänge | 22 |
|---|
| l1 | 70 |
|---|
| l2 | 55 |
|---|
| l3 | 4 |
|---|
| m1 | 48 |
|---|
| m2 | 16 |
|---|
| s2 | 13 |
|---|
| z Schraubstellen | M8-45 |
|---|
| d1 / s1 | V - Vierkant |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,162 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 231 |
|---|
| Order designation | GN 231-V20-2-SW |
|---|
| EAN | 4045525637832 |
|---|

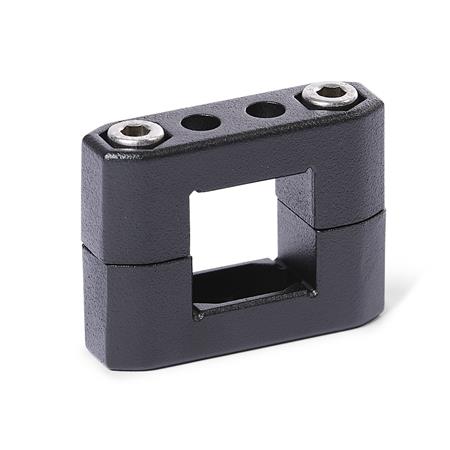

| Manufacturer designation (German) | Rohrschellen, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
