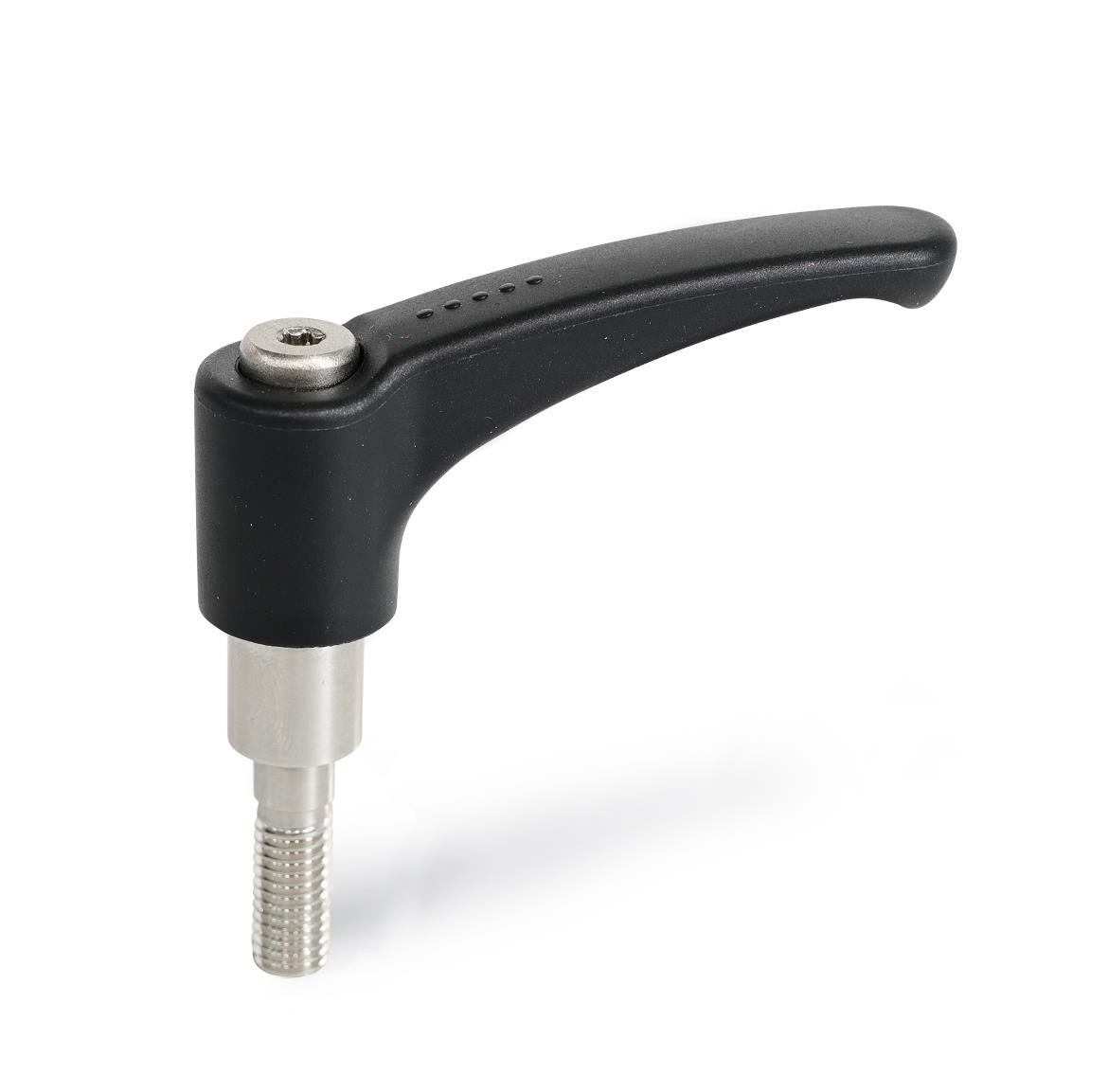

Verstellbare Klemmhebel GN 911.9 – Ganter GN 911.9-63-M6-20-SG
Dimensional drawing Ganter GN 911.9-63-M6-20-SG
Preview: Verstellbare Klemmhebel GN 911.9 – Ganter GN 911.9-63-M6-20-SG
Preview: Dimensional drawing Ganter GN 911.9-63-M6-20-SG
Verstellbare Klemmhebel GN 911.9
Verstellbare Klemmhebel GN 911.9 – Ganter GN 911.9-63-M6-20-SG
Dimensional drawing Ganter GN 911.9-63-M6-20-SG
Mobile Preview: Verstellbare Klemmhebel GN 911.9 – Ganter GN 911.9-63-M6-20-SG
Mobile Preview: Dimensional drawing Ganter GN 911.9-63-M6-20-SG

Verstellbare Klemmhebel GN 911.9

Product No.:
911.9-63-M6-20-SG
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Grifflänge l163
    Anschlussgewinde d1M 6
    Gewindelänge l220
    FarbeSG - schwarzgrau, RAL 7021, matt
    WerkstoffPA - Kunststoff, Polyamid
    d210
    h19
    h2 ≈40
    RoHSJa
    Gewicht0,043 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 911.9
    Order designationGN 911.9-63-M6-20-SG
    EAN4045525858374
    Manufacturer designation (German)Verstellbare Klemmhebel für Klemmverbinder aus Kunststoff
    Order unitPiece
    Customs tariff number84879090
    eCl@ss 5.1.490909090
