Technical data (manufacturer information, German terms)
| Bohrung d1 | B 42 |
|---|
| Bohrung d2 | B 42 |
|---|
| Klemmlänge k | 76 |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Kennziffer | 2 - mit 4 Edelstahl-Zylinderschrauben ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| l1 | 176 |
|---|
| l2 | 98 |
|---|
| l3 | 70 |
|---|
| m | 127 |
|---|
| z Schraubstellen | M10-60 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z l4 | 78 | 92 |
|---|
| d1 / s1 | B - Bohrung |
|---|
| d2 / s2 | B - Bohrung |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,100 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 194 |
|---|
| Order designation | GN 194-B42-B42-76-2-BL |
|---|
| EAN | 4045525654570 |
|---|

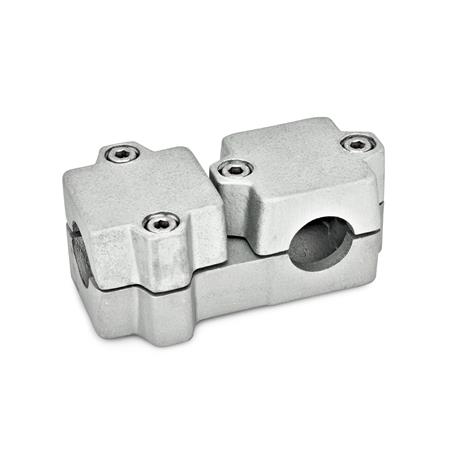

| Manufacturer designation (German) | Winkel-Klemmverbinder, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
