Technical data (manufacturer information, German terms)
| Bohrung d1 | B 15 |
|---|
| Bohrung d2 | B 12 |
|---|
| Oberfläche | SW - schwarz, RAL 9005, strukturmatt |
|---|
| Kennziffer | 2 - mit Edelstahl-Zylinderschraube ISO 4762 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| b Laschenbreite | 25 |
|---|
| d3 | 27 |
|---|
| k | 25 |
|---|
| l1 | 64 |
|---|
| m | 29,5 |
|---|
| t | 11 |
|---|
| z Schraubstelle | M6-20 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z l2 | 45 | 63 |
|---|
| Zubehör empf. Klemmhebel GN 911 für z x1 | 45 |
|---|
| x2 | 63 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,074 kg |
|---|

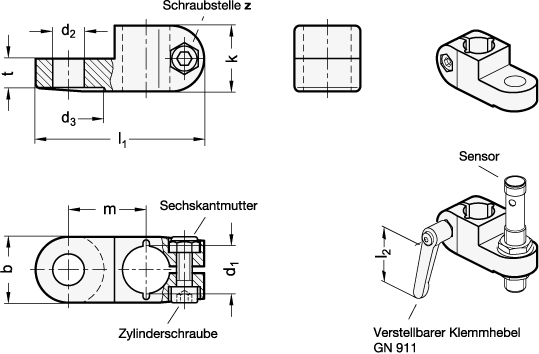

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 273.4 |
|---|
| Order designation | GN 273.4-B15-B12-2-SW |
|---|
| EAN | 4045525725812 |
|---|
| Manufacturer designation (German) | Sensorhalter, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 27279202 |
|---|
