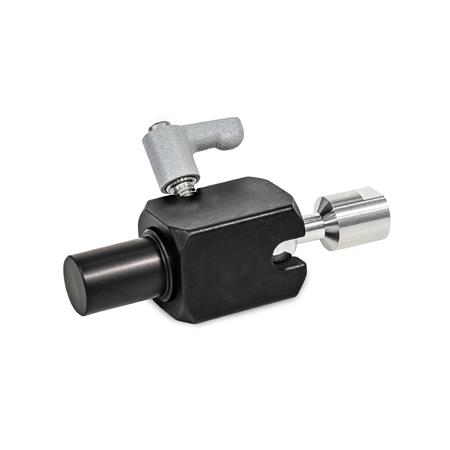

Technical data (manufacturer information, German terms)
| Welle d2 (Form W) | 20 |
|---|
| Gewinde d3 | M 8 |
|---|
| Form | W - mit Welle |
|---|
| Kennzeichen | I - Kugelstück mit Innengewinde |
|---|
| Kennziffer | 1 - Klemmung mit verstellbarem Klemmhebel |
|---|
| Oberfläche | ES - eloxiert, schwarz |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d4 | 15 |
|---|
| d5 | 24 |
|---|
| k | 30 |
|---|
| l2 | 30 |
|---|
| l3 | 50 |
|---|
| l4 | 18,6 |
|---|
| l8 | 26 |
|---|
| l9 | 44 |
|---|
| m3 | 36,3 |
|---|
| r2 | 36,5 |
|---|
| sw | 13 |
|---|
| t1 min. | 12 |
|---|
| empfohlenes Anzugsdrehmoment der Klemmung (Kennziffer) in Nm ≈ | 2,5 |
|---|
| resultierendes Haltedremoment an der Kugel in Nm ≈ | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,154 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 487 |
|---|
| Order designation | GN 487-20-W-M8-I-1-ES |
|---|
| EAN | 4045525865594 |
|---|
| Manufacturer designation (German) | Kugelgelenk-Klemmhalter, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
