Technical data (manufacturer information, German terms)
| Bohrung d1 | B 8 |
|---|
| k | 16 |
|---|
| Oberfläche | MT - matt, gleitgeschliffen |
|---|
| Form | A - mit Bohrung |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | 7 |
|---|
| d4 Gelenkbohrung | 4,5 |
|---|
| d5 | M 4 |
|---|
| l1 | 30 |
|---|
| l2 | 22 |
|---|
| l3 | 13 |
|---|
| l4 | 8 |
|---|
| l5 | 5,5 |
|---|
| l6 | 16 |
|---|
| t | 8 |
|---|
| Laschengelenkset für d4 Form S | 511.1-M4-16-S |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,117 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 483 |
|---|
| Order designation | GN 483-B8-16-A-MT |
|---|
| EAN | 4045525893542 |
|---|

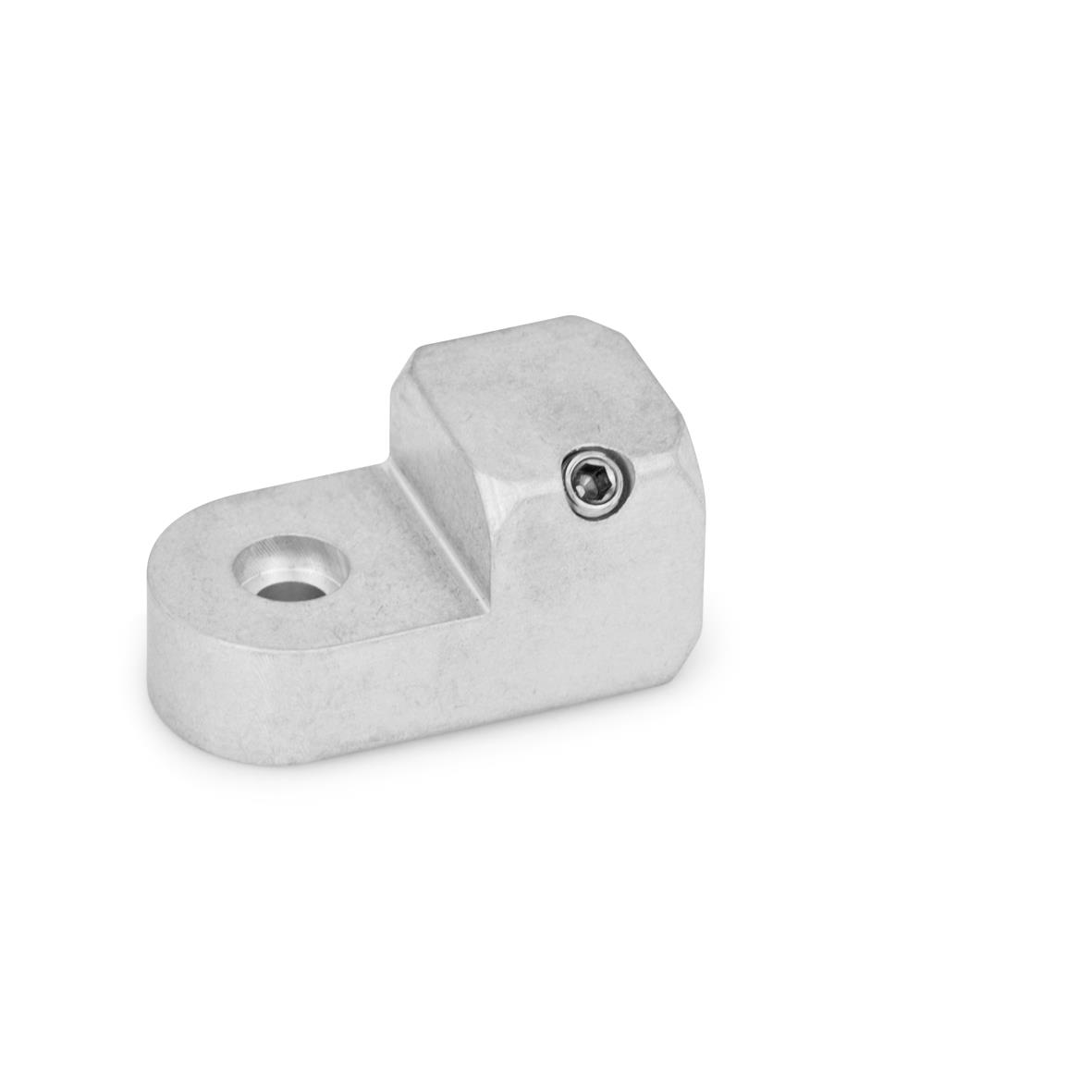

| Manufacturer designation (German) | T-Laschen-Klemmhalter |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
