Technical data (manufacturer information, German terms)
| d1 Bohrung | B 16 |
|---|
| Oberfläche | BL - blank, matt gestrahlt |
|---|
| Kennziffer | 3 - mit Edelstahl-Gewindestift DIN 913 |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 5,5 |
|---|
| k Klemmlänge | 32 |
|---|
| Länge l | 25 |
|---|
| t | 6 |
|---|
| x1 | 40 |
|---|
| x2 | 28 |
|---|
| y1 | 40 |
|---|
| y2 | 28 |
|---|
| z Schraubstelle | M6-6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,042 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 162.8 |
|---|
| Order designation | GN 162.8-B16-3-BL |
|---|
| EAN | 4045525750562 |
|---|

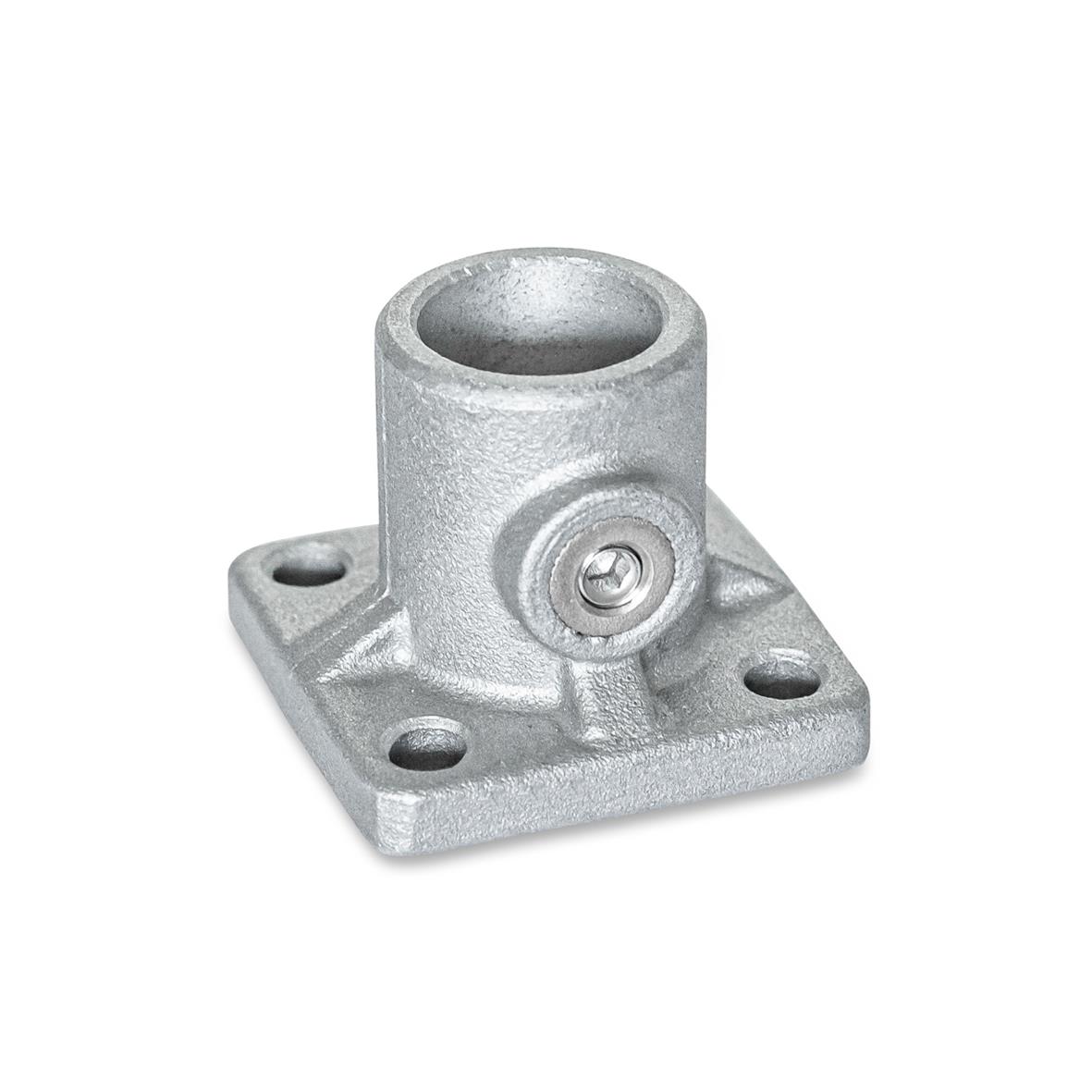

| Manufacturer designation (German) | Fuß-Klemmverbinder, Aluminium, mit Gewindestift |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
