Technical data (manufacturer information, German terms)
| Bohrung d1 | B 30 |
|---|
| Bohrung d2 | B 30 |
|---|
| Form | B - mit Dichtungen |
|---|
| Kennziffer | 4 - mit 2 Edelstahl-Hutmuttern DIN 917 |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| b | 22 |
|---|
| Klemmlänge k1 | 37 |
|---|
| k2 Klemmlänge | 42 |
|---|
| l1 | 96 |
|---|
| l2 | 35 |
|---|
| m | 60 |
|---|
| z1 Schraubstelle | M 8 |
|---|
| z2 Schraubstelle | M 8 |
|---|
| Zubehör empf. Klemmhebel GN 911.3 für z1 l3 | 63 | 78 |
|---|
| für z2 l3 | 63 | 78 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,320 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 192.5 |
|---|
| Order designation | GN 192.5-B30-B30-B-4 |
|---|
| EAN | 4045525932722 |
|---|

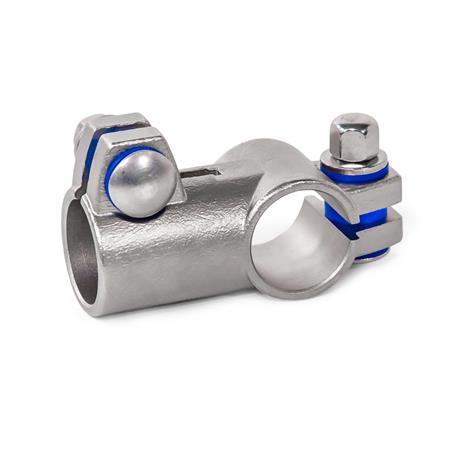

| Manufacturer designation (German) | Winkel-Klemmverbinder, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73072210 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
