Technical data (manufacturer information, German terms)
| Breite b1 | 25 |
|---|
| Nutbreite n | 8 |
|---|
| Länge s1 s1 | 40 |
|---|
| Länge s2 s2 | 40 |
|---|
| Form | B - 2 x Bohrungen d, mit Führungstege |
|---|
| Kennziffer | 2 - mit Abdeckkappe |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| b2 | 8,5 |
|---|
| b3 | 20 |
|---|
| d | 8,5 |
|---|
| h min. | 4 |
|---|
| l1 | 14,5 |
|---|
| l2 | 13 |
|---|
| l3 | 22,5 |
|---|
| s3 | 7 |
|---|
| Belastbarkeit M in Nm max. | 30 |
|---|
| Anzugsmoment in Nm min. | 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,012 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 561 |
|---|
| Order designation | GN 561-25-8-40-40-B-2 |
|---|
| EAN | 4045525862784 |
|---|

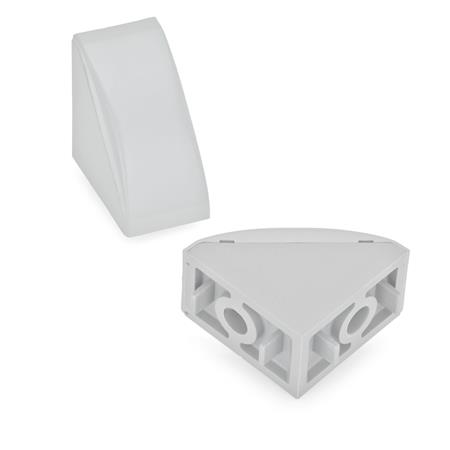

| Manufacturer designation (German) | Befestigungswinkel, Form B / Form C, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
